Product Description

Tiny House Arica (7×10 m) – 47.4 m² living area, 44 mm wall logs

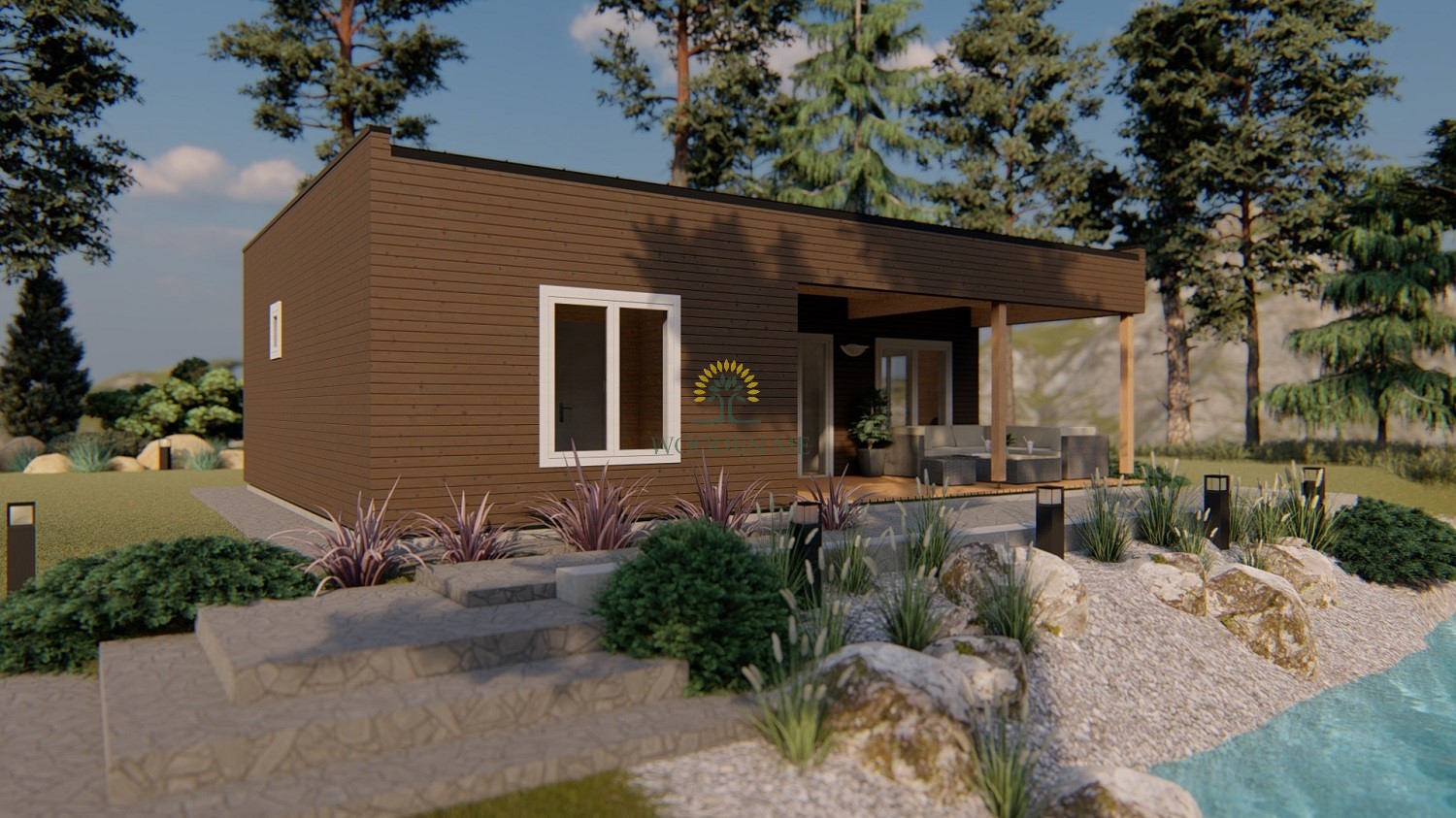

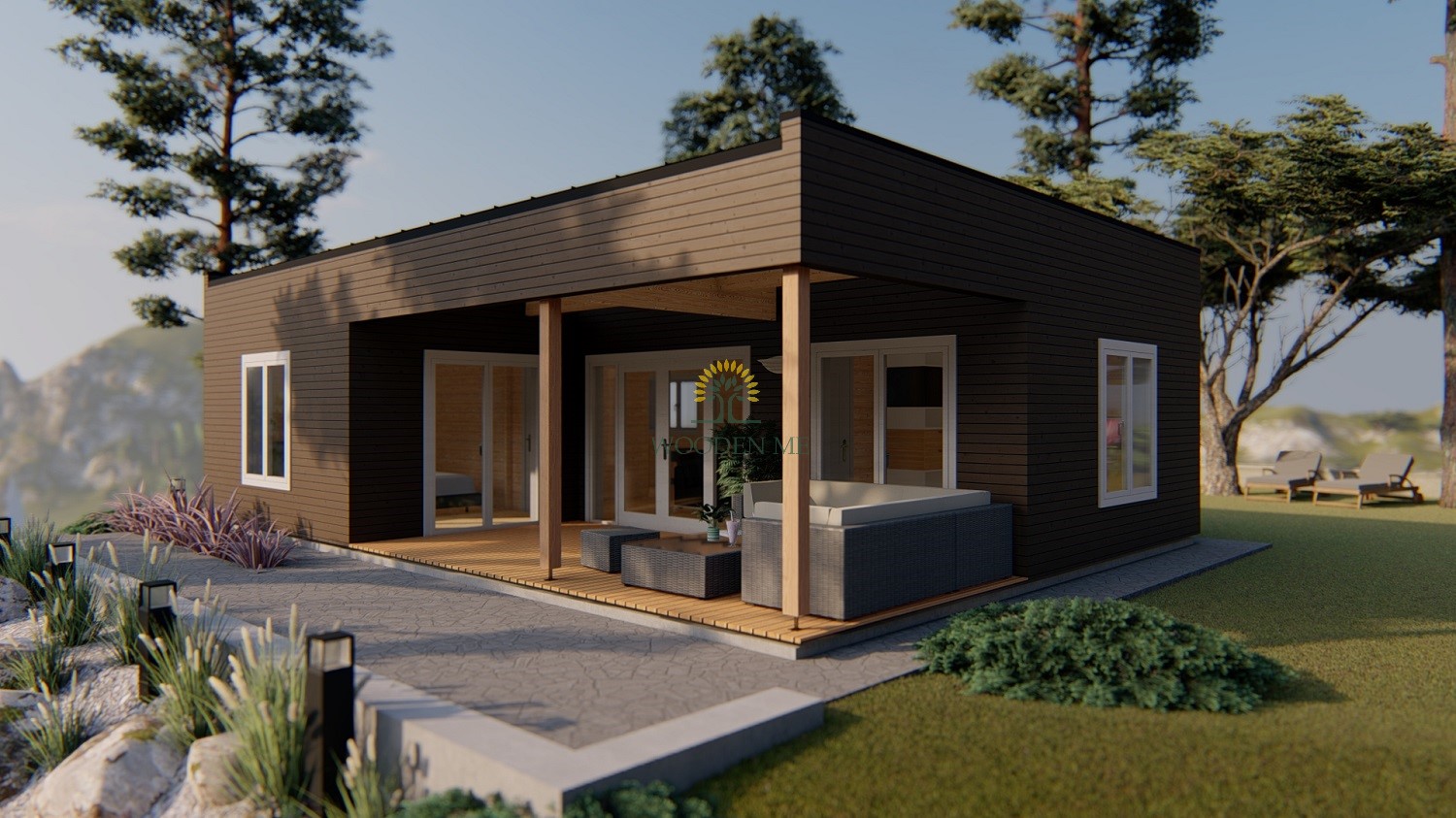

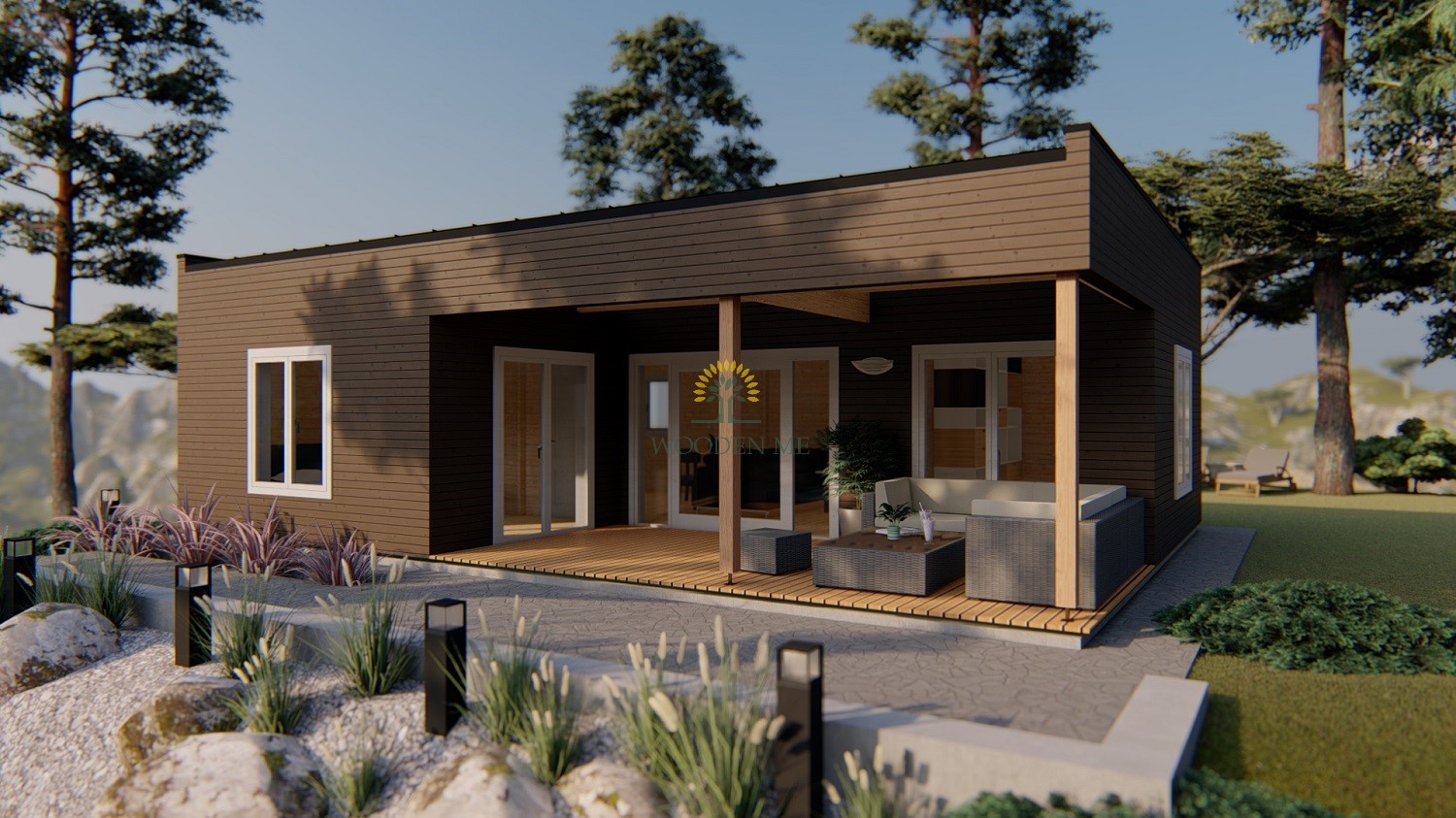

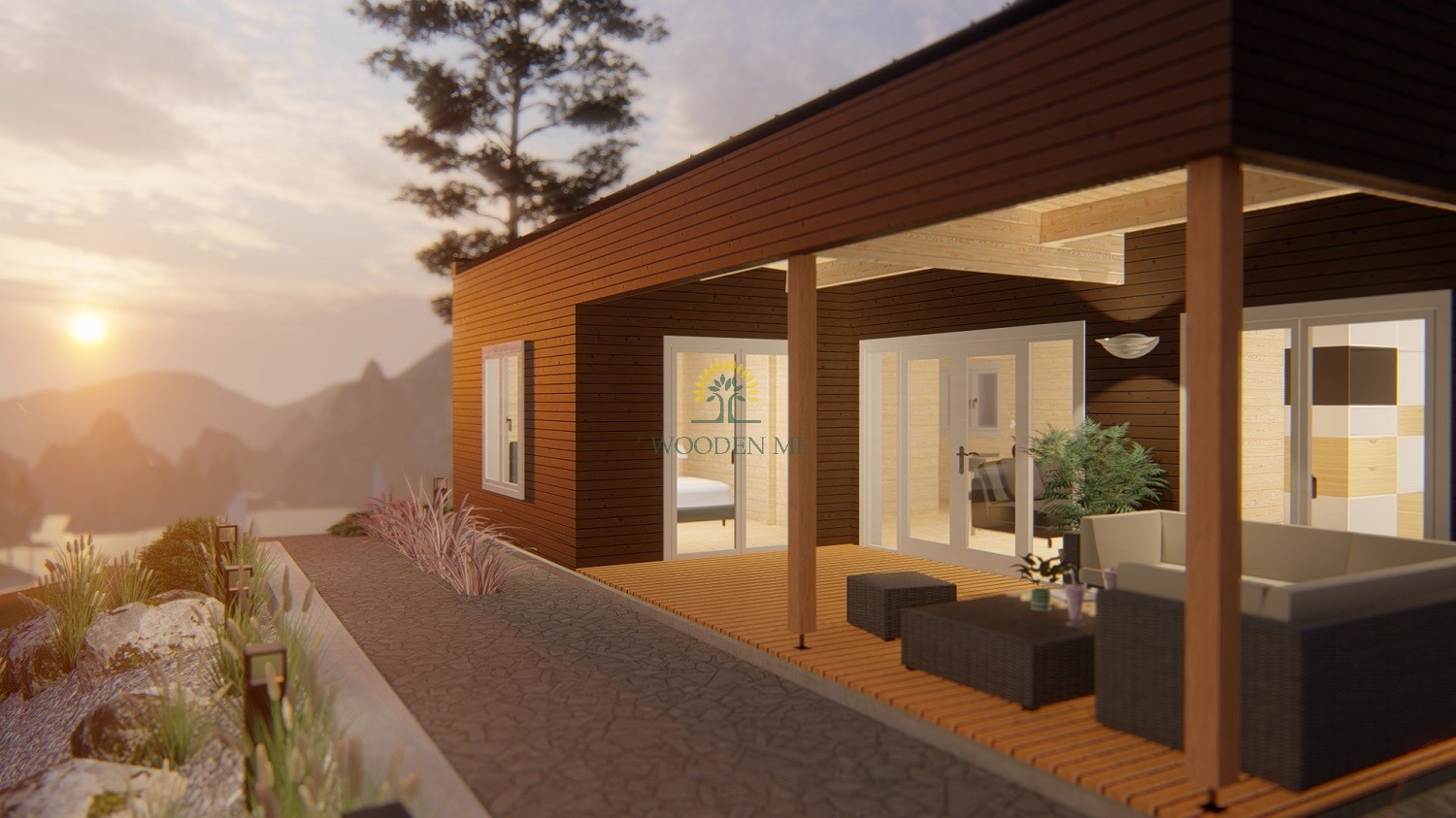

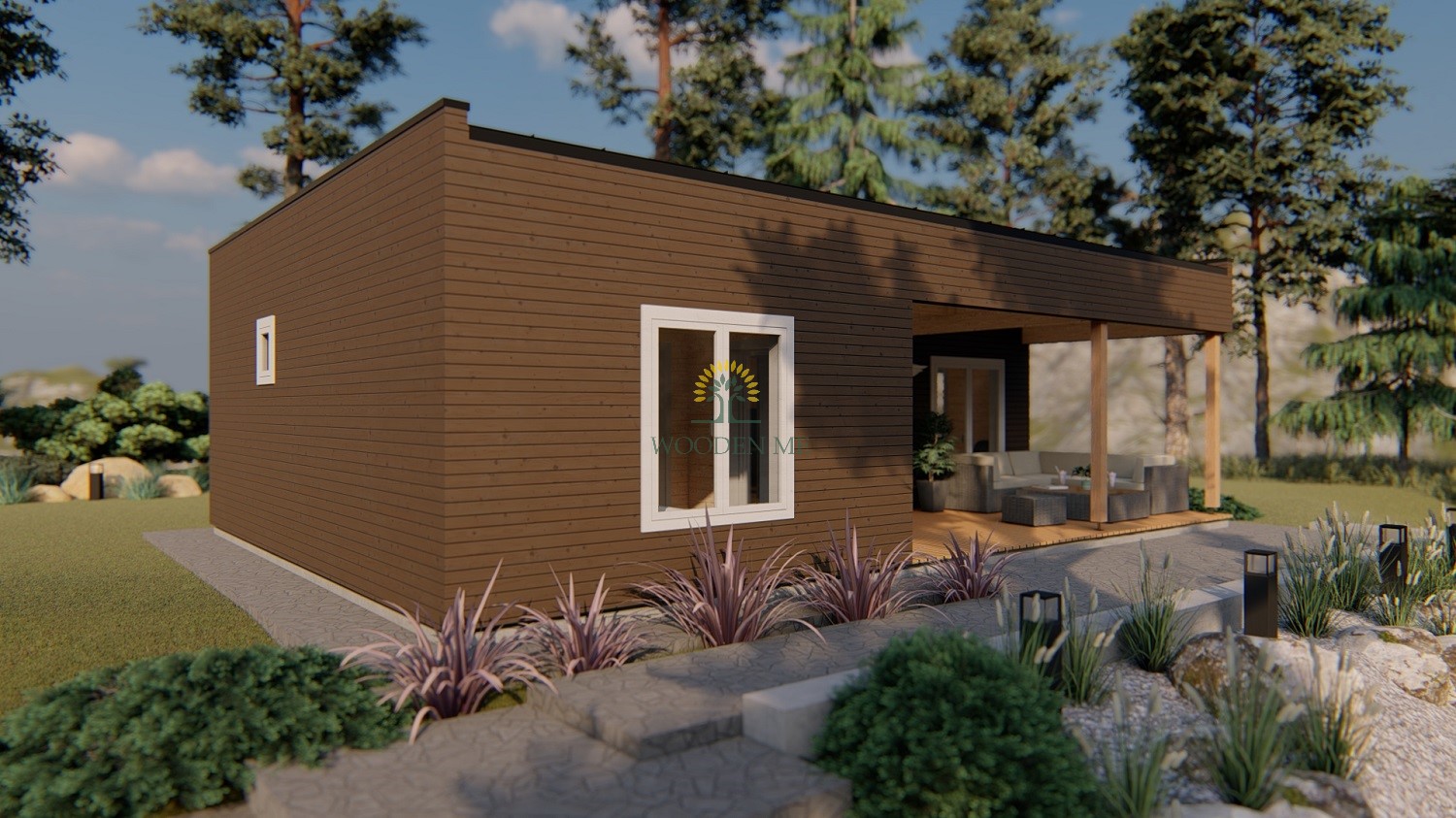

Tiny House Arica is a stylish and functional wooden house with a total internal area of 47.4 m² and wall thickness of 44 mm. It combines contemporary design with a spacious layout and large windows, which make it ideal for summer homes, guest houses, or even full-year living. Moreover, thanks to its premium windows and doors, Arica ensures both comfort and aesthetics in a natural wooden structure. Therefore, it’s a great long-term investment for those who value durability and modern design.

📐 Technical Specifications

Below is a full breakdown of the technical details. These figures help ensure accurate planning and compliance with local regulations:

External dimensions	7 × 10 m
Base footprint	6.8 × 9.8 m
Internal floor area	47.4 m²

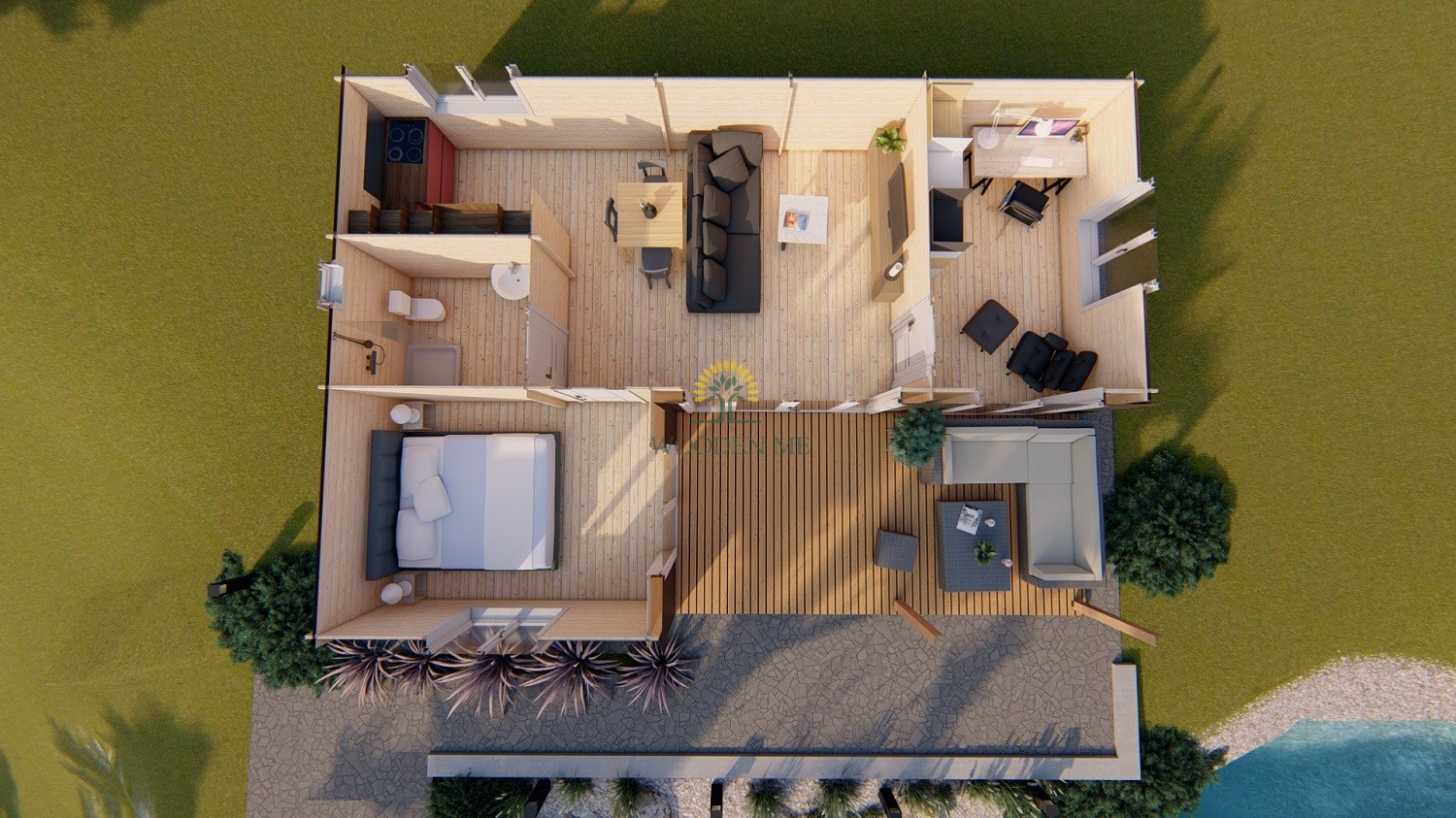

Internal room sizes	18.2 m², 16.6 m², 10.9 m², 4.5 m², 3.2 m²
Wall thickness	44 mm
External wall area	74 m²
Roof area	70.2 m²
Roof type	Flat with 4° slope
Ridge height	2.84 m
Wall height	2.43 m
Floorboards	28 mm
Terrace boards (optional)	28 mm
Roof boards	19 mm
Floor bearers	68 × 60 mm
Glazing	4-16-4 double glazing

🪟 Windows and Doors

In addition to the technical features, Arica comes equipped with a premium door and window set for optimal light and insulation:

• 1 quad door (100% glass) – 1.98 × 3.0 m
• 3 single full wood doors – 1.98 × 0.85 m
• 1 window – 0.52 × 0.5 m
• 1 double window – 0.92 × 1.3 m
• 2 double windows – 1.43 × 1.3 m
• 2 double windows – 1.98 × 1.5 m
• Additionally, all doors include a steel-covered threshold for enhanced durability

🔧 Product Details

Each detail is thoughtfully crafted to ensure the best experience from assembly to long-term use. For example, the following features contribute to both performance and ease of installation:

• 🪟 Double-glazed windows (2 × 4 mm glass + 12 mm space) ensure insulation and energy efficiency
• 🔒 Door lock with cylinder and key for enhanced security
• 🔩 Adjustable hinges for doors and windows, making installation smoother
• 🧰 Nails and screws included for easy assembly
• 📘 Furthermore, a detailed assembly manual is included to guide you step by step

🚚 Terms of Delivery

We aim to make delivery smooth and transparent. Consequently, please read the terms below carefully:

📍	Free delivery is available to the South of England, East of England, and the London area.
📦	For other regions in the UK, Scotland, or Ireland, please inquire about the shipping price.
🗺️	Delivery to non-covered areas depends on the postcode and will be assessed individually.
🚛	We deliver using export trailers due to the size and distance involved.
⚠️	Lifting service is not available. Therefore, customers must organize unloading.
💬	If terminal delivery with unloading is required, please include this in your request.

🔗 Useful Links

For further information and guidance, explore the resources below:

• 📹 EPDM roof covering: Watch Video
• 📄 Arica drawings for municipality confirmation: Download PDF
• 🛠️ Arica assembly instructions: Download PDF

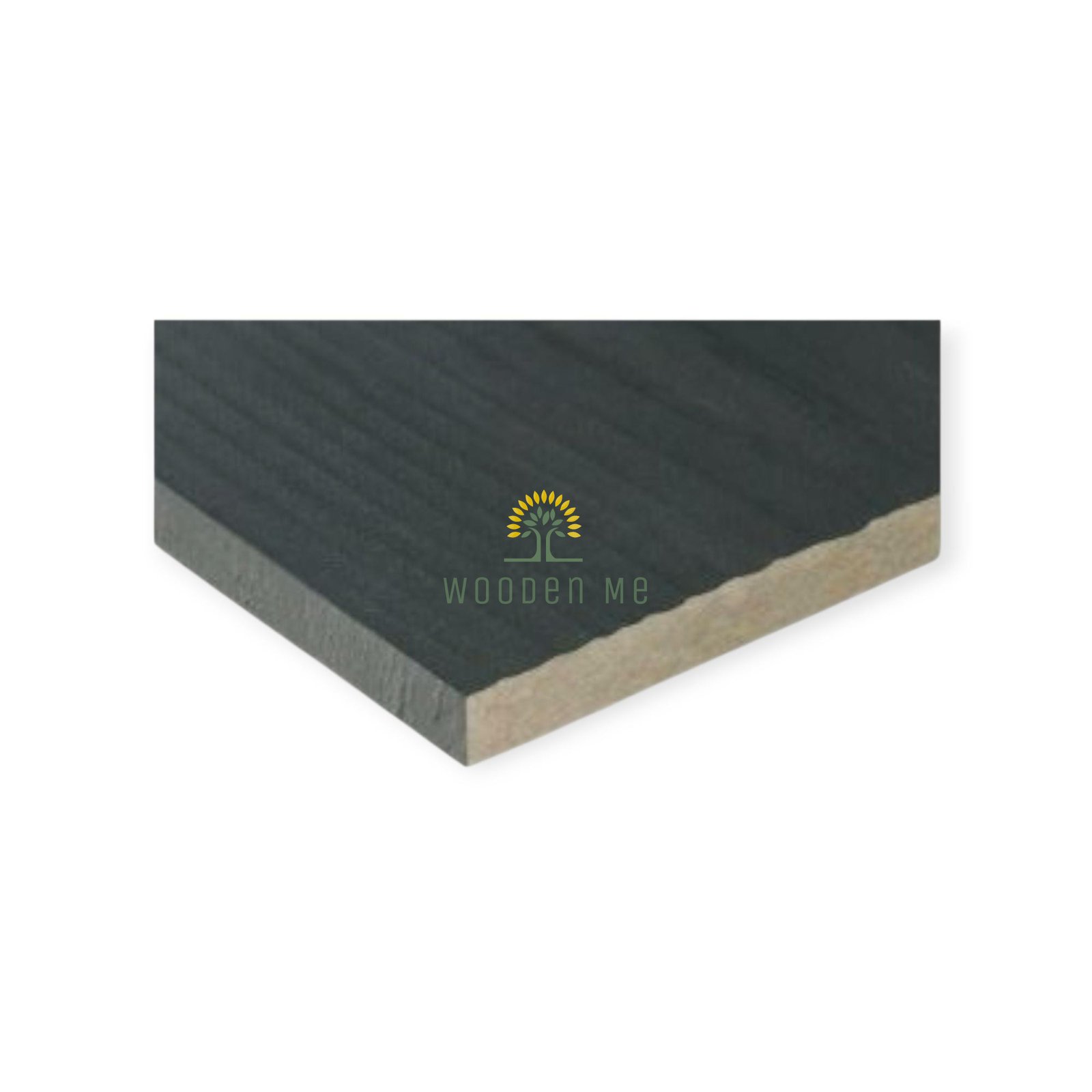

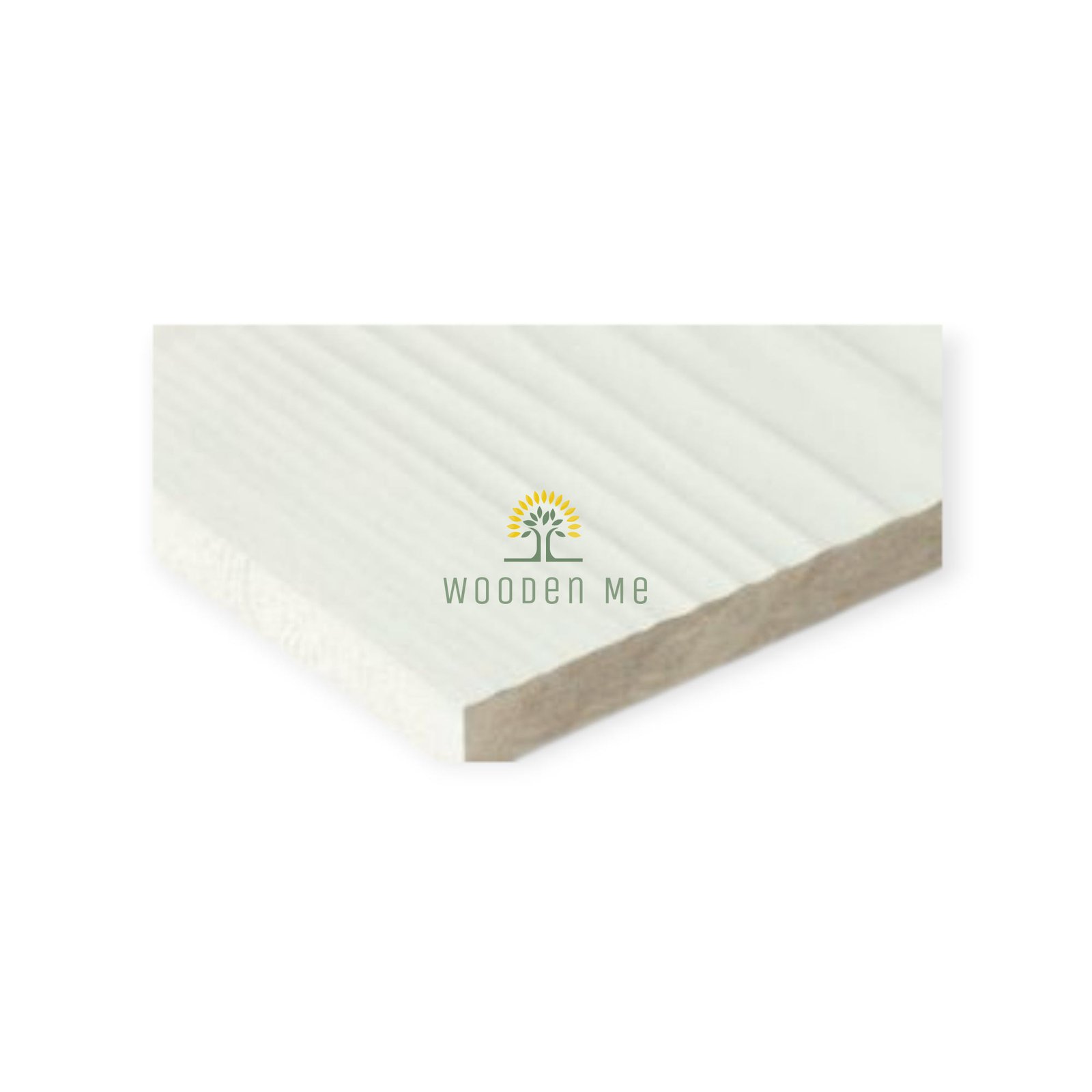

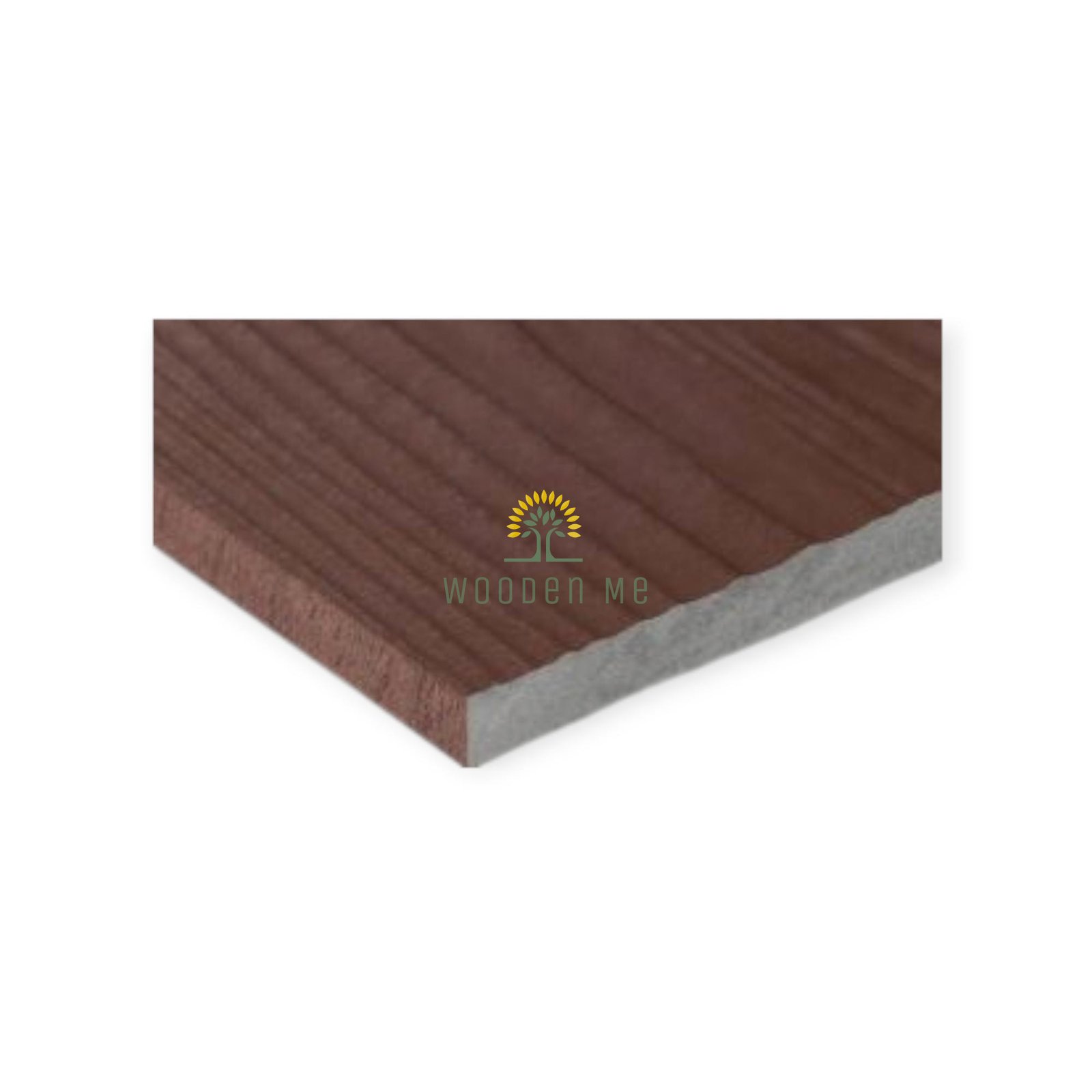

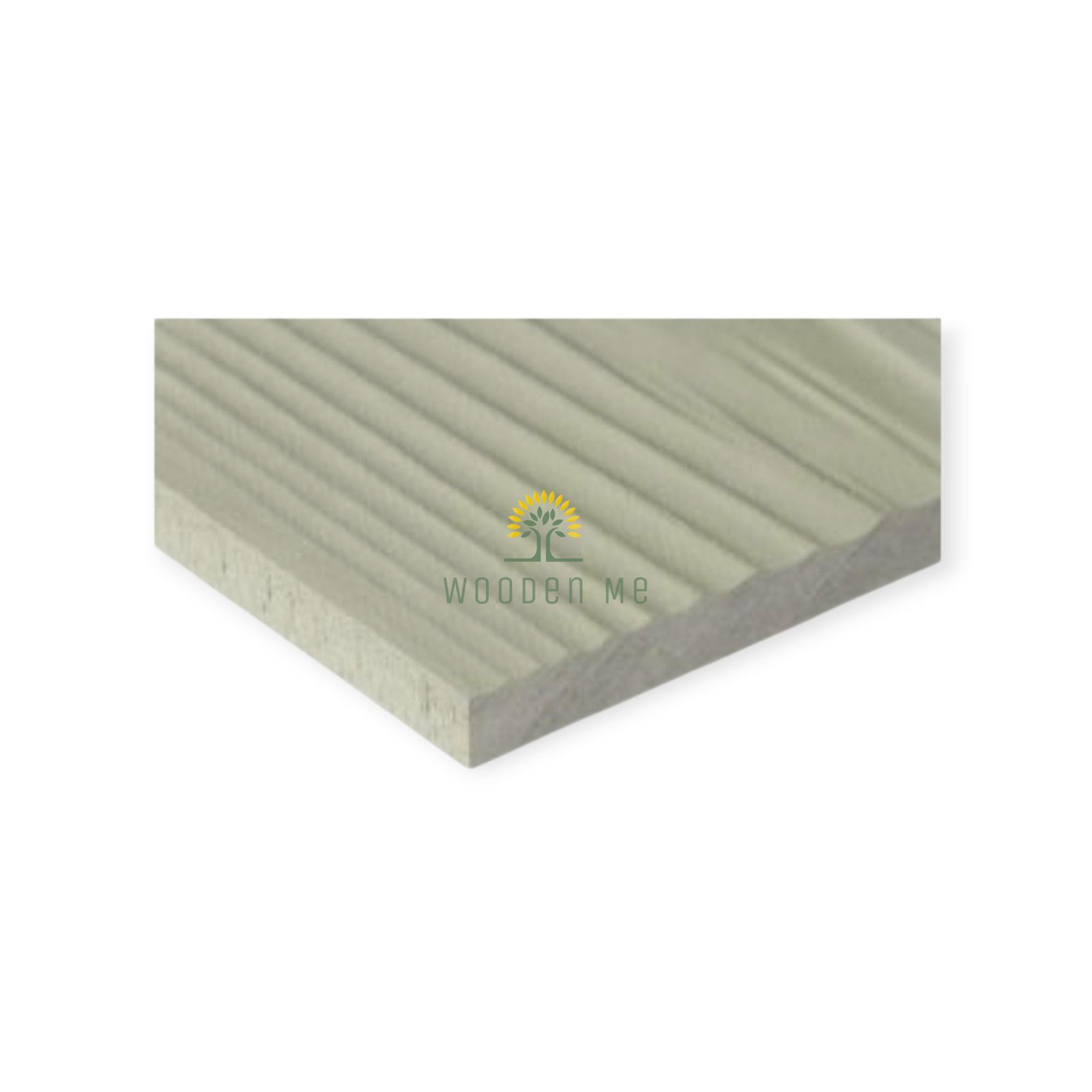

• Fibre Cement Façade Boards
